Large Frame Manual Honey Extractor for Layens Hives – Perfect for Beekeepers & Home Honey Harvesting

Product Description

Manual extractor to extract honey from all frames - even the largest out there!

Extract large frame sizes in this large frame extractor from Lyson!

This manual crank extractor was specifically developed to extract frames larger than the standard Langstroth frames. It can extract 4 Layens, 4 AZ/Slovenian frames, or 4 Langstroth deeps/8 mediums at once.

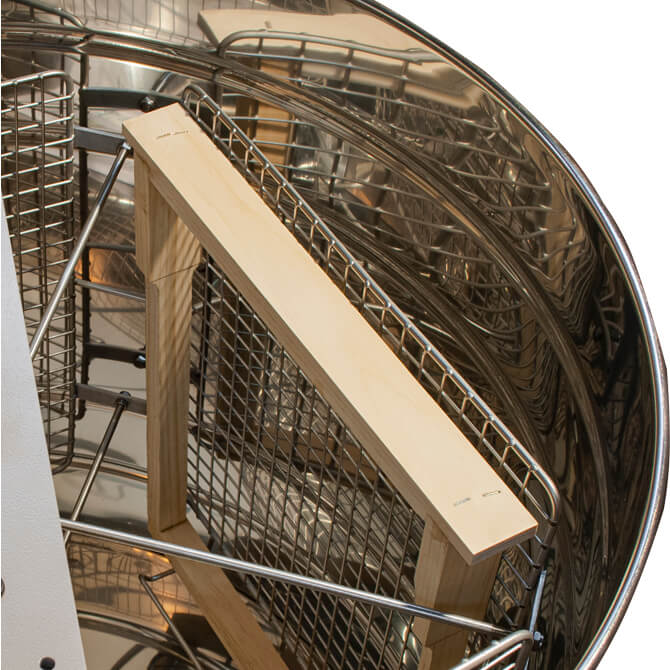

Shown with a Layen frame in the basket. The frame dimensions are 16" high, side bar outside width is 13" and the top bar is 1-1/2" wide by 14-5/16" long.

Features:

• Tangential, universal wire basket (great for thicker honey)
• 1-1/4" stainless steel honey gate securely welded to the tank
• 24 gauge stainless steel drum with conical bottom to drain out the extracted honey without the need to tip the drum

Note:

Product Specifications:

• Maximum frame size: 18-1/2" H x 14-1/2" W x 1-1/2" D
• Drum Diameter: 25-1/2" (650mm)
• Drum Height: 23-3/4"
• Overall Drum Height: 37-1/4"
• Clearance below Honey Gate: 13-1/4"
• Rubber pads for bottom of legs included
• Some assembly required
• Unit weight empty: 60 pounds
