Product Description

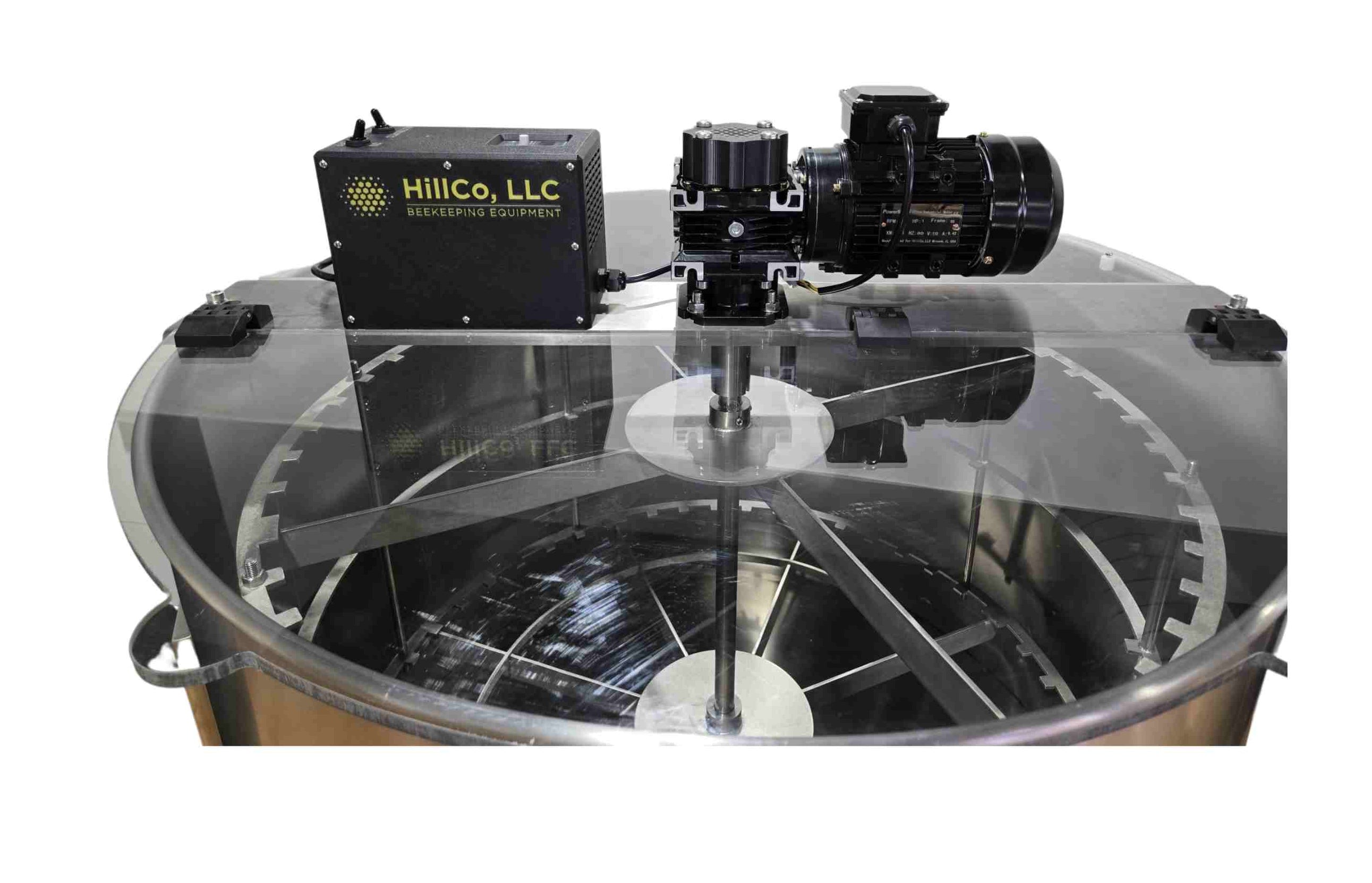

The Maxx48 is our biggest, baddest, beefiest extractor yet!

• Proven PowerMax drive system: an industrial grade motor, gearbox, and upgraded controller. This combination is smooth, quiet and durable. A great combination of simplicity and refinement, this drive system performs fabulously!

• 18 gauge, type 304 food-grade stainless steel tank - thickest in the industry!
• Ez-Drain honey gate design: the honey drain valve is located slightly below the tank floor, giving you a complete, seamless honey drain.
• Maxx extractor tank features a HillCo-exclusive tank bottom that slopes towards the front, ensuring that all your honey flows smoothly towards the gate. No tipping the tank, no hassle, it just works!
• Industry leading 4/10 warranty: motor, gearbox, controller, and wiring are guaranteed for 4 years. The rest of the machine (tank, legs, lower bearing, reel, etc), are guaranteed for 10 years! We have engineered a quality product and we will stand behind it!
• Designed and assembled in USA by HillCo! Most components manufactured in North America.

Other features/specs:

• 1 hp PowerMax motor, 5:1 ratio worm-drive gearbox
• Plugs into normal 110v household power outlets (draws about 6 amps max)
• Extracts 44 deep frames, or 48 medium/shallow frames radially
• Grease-able, heavy duty lower bearing

• Features two massive 2" NPT honey gates with ball valves
• 5 gallon bucket and strainer fit below the honey gates, if needed
• Tank diameter - 39.5"
• Width (at widest point) - 42"
• Overall height - 57"
• Weight - 240 lbs.


This is a fantastic machine, and we know you'll love it!
